highly efficient LED light designed for Pharma, Biotech and Healthcare
highly efficient LED light designed for Pharma, Biotech and Healthcare

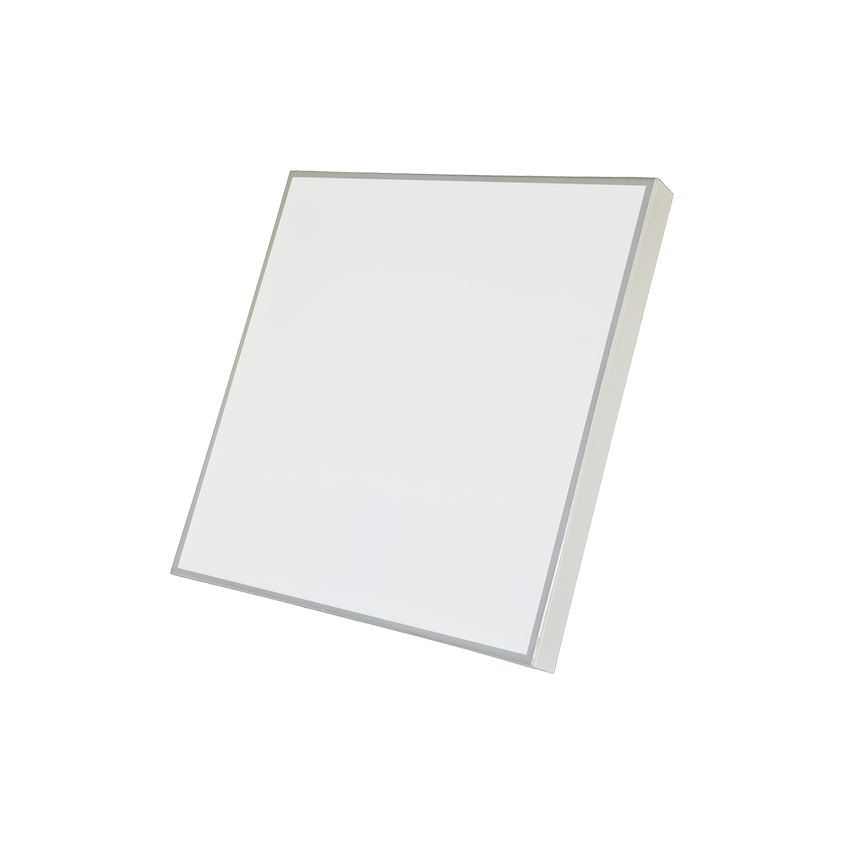

Bioled PRO is a high efficient Led luminaire designed for high hygienic facilities, like Pharma, Biotech, Healthcare, Labs and Food. Its unique slim-line steel frame fits flush and airtight in ceilings or walls. With the latest LED technology on board, this smart Bioled PRO combines modern design, comfort and health with economic values and long life functionality.
| Models | |
|---|---|
| BP-Basic model | : Bioled PRO Basic Model |
| ST-Service from Top | : Safe airtight seal during maintenance from top of ceiling |
| SB-Service from Bottom | : Safe airtight seal during maintenance from bottom of ceiling |
| UW-Unwalkable ceiling | : Bioled PRO with airtight flush click-in connection |
| CM-Customized Model | : Customized to fit required opening/fitting |
| Standard Specifications | T2-30x60 | T2-60x60 | T2-30x120 | T2-60x120 | ||
|---|---|---|---|---|---|---|
| Power consumption | 25W | 40W | 60W | 40W | 54W | 90W |
| Input voltage | 220~240V | 220~240V | 220~240V | 220~240V | 220~240V | 220~240V |
| Luminous flux | 2.250 Lum | 3.600 Lum | 5.400 Lum | 3.600 Lum | 4.860 Lum | 8.100 Lum |
| Luminous efficiency | 90 Lm/W | 90 Lm/W | 90 Lm/W | 90 Lm/W | 90 Lm/W | 90 Lm/W |
| LED type | 0.5 w 140 pcs | 0.5 W 196 pcs | 0.5 W 168 pcs | 0.5 W 198 pcs | 0.5 W 264 pcs | 0.5 W 396 pcs |
| Product weight (kg) | 3.2 KG | 5.8 KG | 5.8 KG | 7.8 KG | 7.8 KG | 14.2 KG |
| Product size (WXLXH cm) | 30x60x5 | 60x60x5 | 60x60x5 | 30x120x5 | 30x120x5 | 60x120x5 |
| Color temperature (CCT) | 4,000 K | |||||
| CRI-RA (Color Render Index) | CRI >80 | |||||
| Lifespan | 50,000 hrs | |||||
| Total Harmonic Disortion (THD) | < 10% (DALI Driver) Dimmable < 15% (SD-Fix driver) Standard | |||||
| Driver | Standard (SD) Fix | |||||
| Dimming method/range | DALI 0~100% (Optional) | |||||
| Housing material/color | Galvanized steel / RAL 9016 (White) | |||||
| Diffuser plate | Inner Sand Acrylic | |||||
| Electrical cable | 3 mtr (3*0.75mm²) | |||||
| Plug | EU plug | |||||
| Certificates | CE / CCC | |||||
| Operating temperature range | -20°C~+40°C | |||||
| CRI-RA (Color Render Index) | CRI >90 |
| Color temperature (CCT) | 5,000 K / 6,000 K |
| Protection grade | IP65 |
| Plug | Wieland plug |
| Driver | Dimmable Dali driver |
| Size | Customized size |
| Model | Customized models |
| Monitoring | Dali control system |
| Housing color | Any RAL color |

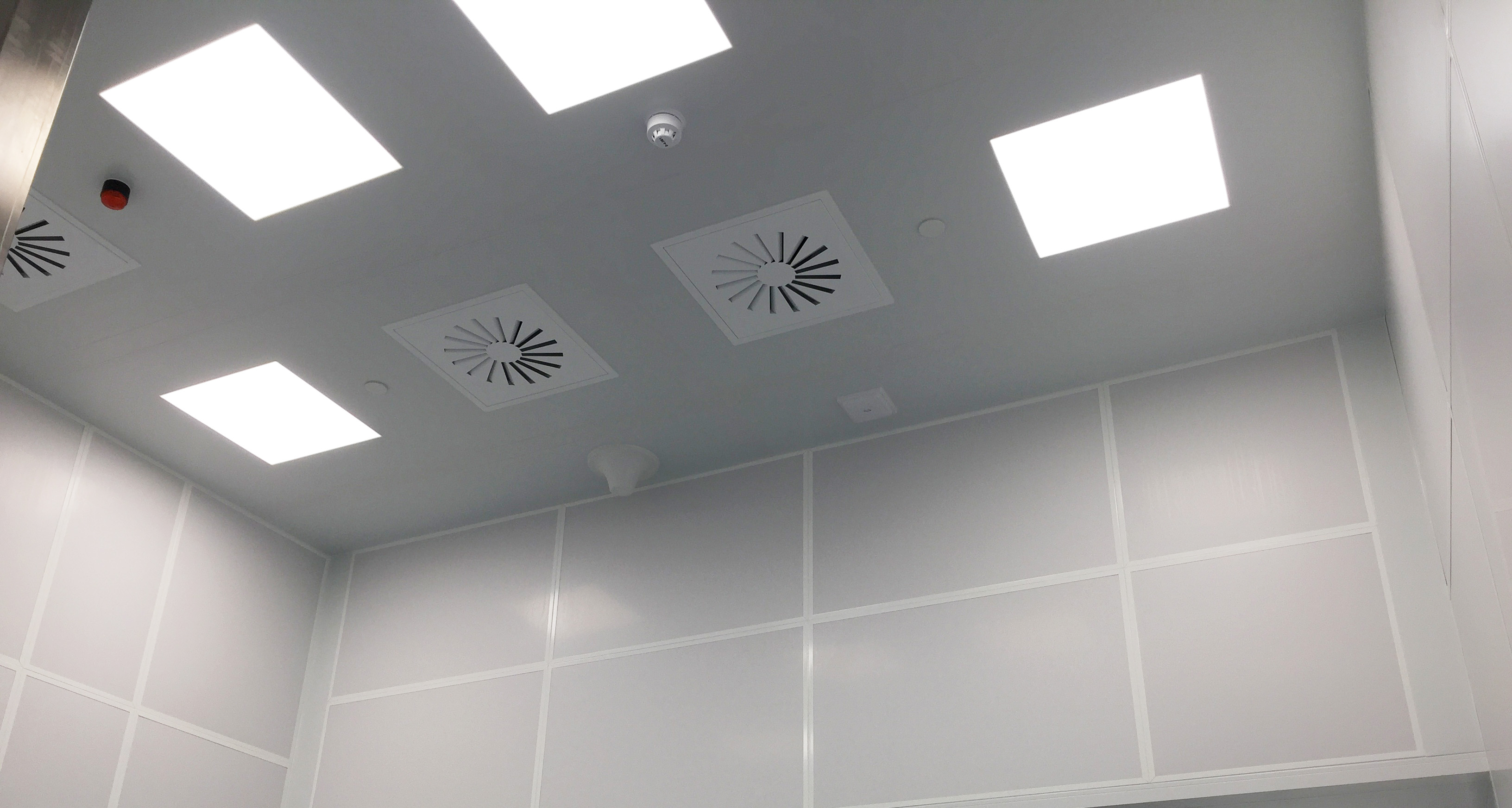

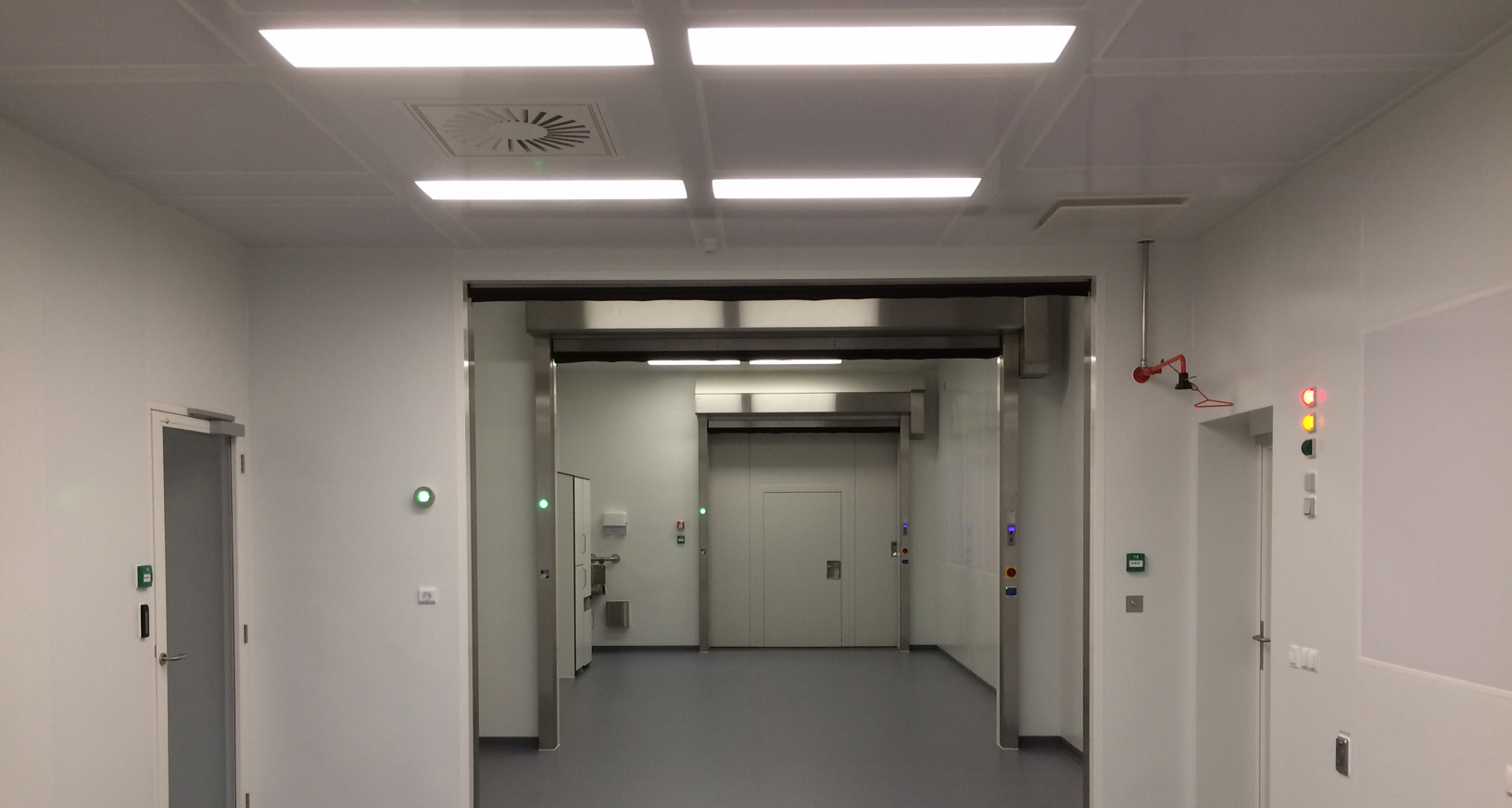

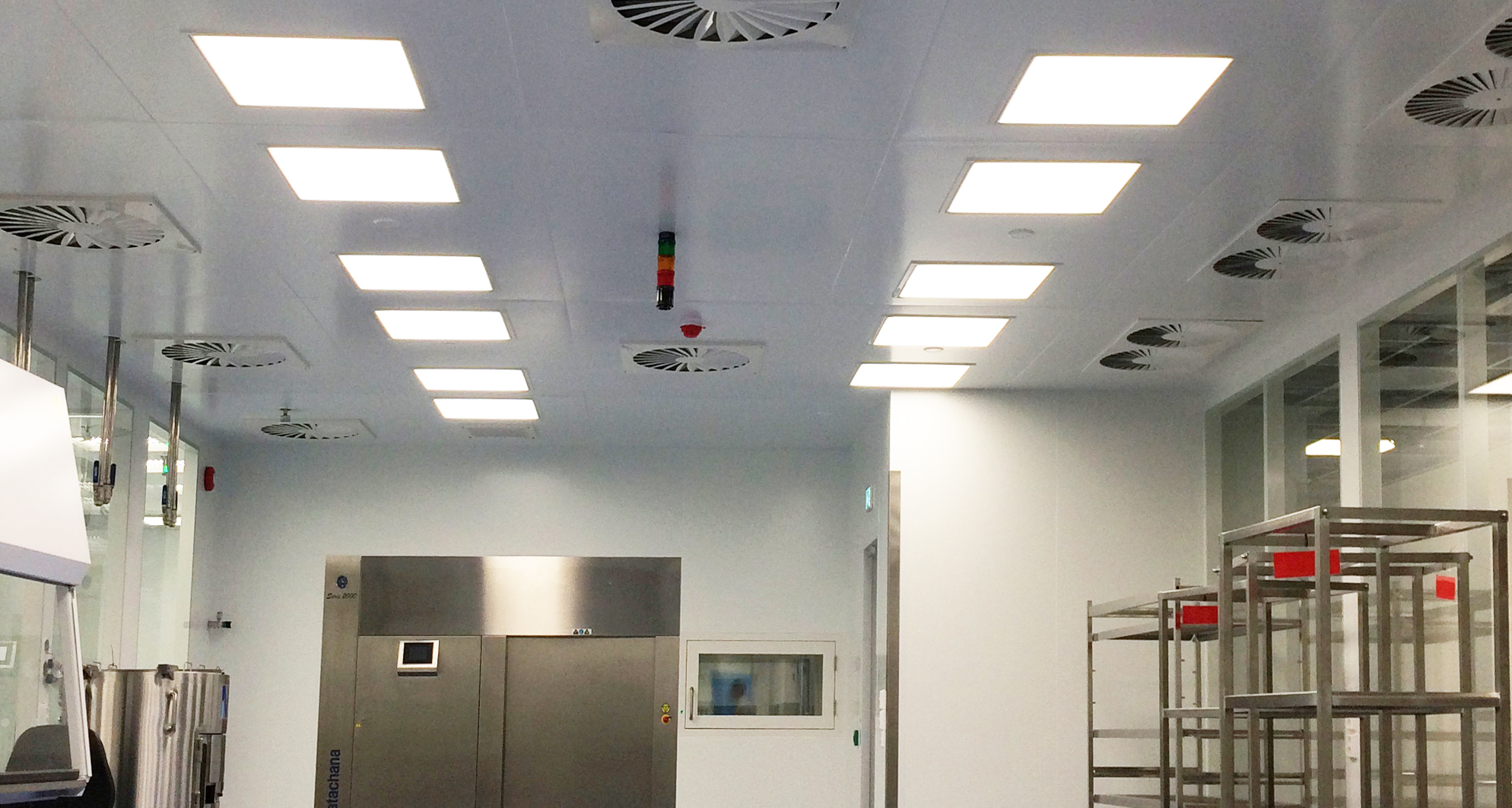

take a closer look at the Bioled PRO types installed
The solid steel housing and high quality parts of Bioled PRO guarantee the long economic life in high demaning hygiene environments. Each model Bioled PRO has been designed to fit precisely for flush finishing. This flush fit is the right solution for keeping the hygiene and clean environment in a very visible way. The high flexibility in Bioled PRO panel sizes and capacities give the opportunity to create special light design solutions with beautiful effects in working environments.
